Building Les Pauls
with Freddy Gabrsek
Part 2
Click
on images to enlarge
![](woodroomth.jpg)
All wood is stored in a temperature and humidity controlled room.

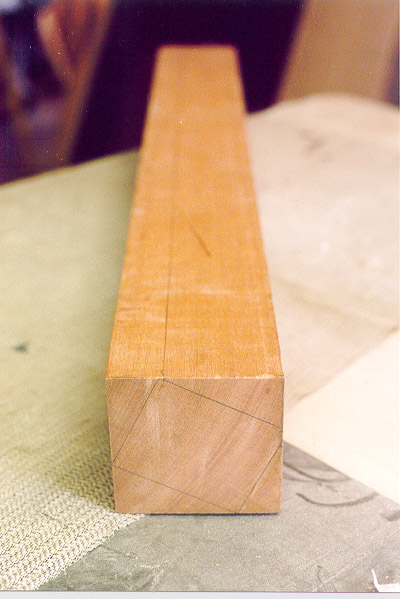

![](neckblankth.jpg)
I've marked out how I will re-saw this piece of mahogany in order to get two quartersawn necks.
![](rufneckth.jpg)
The rough neck profile has been bandsawn. Notice how the two pieces are laid out in a very economic mating position.
![](tenjigth.jpg)
Here is a very simple 4 1/2 degree tenon jig.
![](ruftenth.jpg)
I use a router with a pattern following bit to route the heel mating surface.
![](2tensth.jpg)
The finished tenons.
![](drysnugth.jpg)
This is a dry fit of the tenon into the mortise, it's nice and snug without being forced...just what I want.
![](Stanleyth.jpg)
Making sure that the fingerboard gluing surface of the neck and the body are aligned.

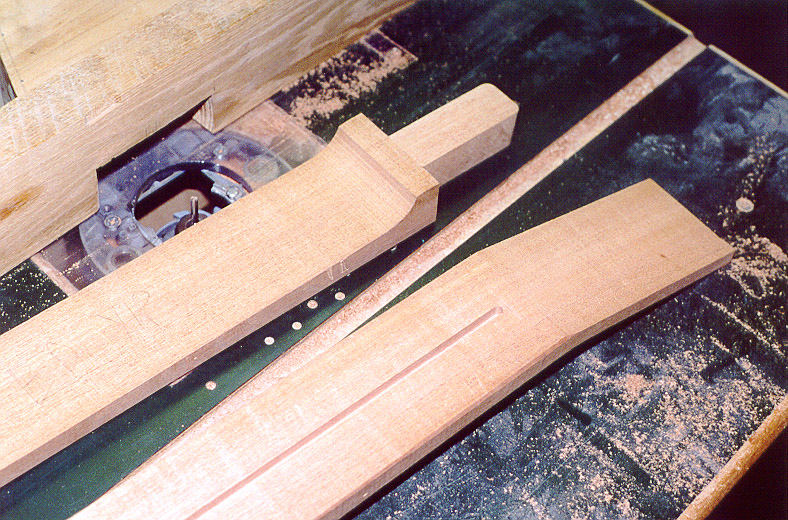

![](rodrouteth.jpg)
Routing the necks for truss rods.
![](hollyth.jpg)
re-sawing holly for the peghead overlay.
